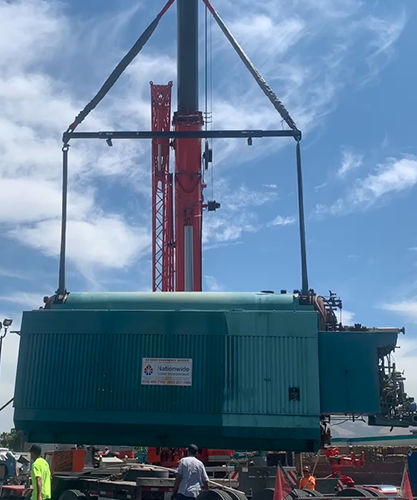

Nationwide Boiler's large fleet of rental boilers includes multiple skid-mounted package boilers available for temporary steam needs. Designed at 500 psi, this used 82,500 lb/hr package watertube boiler is skid-mounted and fully piped and wired.
The complete skid-mounted rental boiler package is available for long-term rental projects and includes the following:
- Low NOx Burner
- EconoStak Economizer
- NEMA 4X Panel with Honeywell RM7800, SILIII Rated Burner Management System
- Allen-Bradley PLC Touchscreen Combustion Controls
- Forced Draft Fan, Motor & Starter
- Complete Fuel Train & Pilot Ignition System
- Water Column & Site Glass
- Steam Pressure Gauge
- Low-water Cutoffs
- Safety Valves (loose)
- Feedwater Stop & Check Valves
- Blowdown Valves
- Continuous Blowdown Metering Valve
- Chemical Feed Valve
- Single Element Feedwater Regulator with Pre-piped 3-Valve Bypass
- Steam Non-return Valve (loose)
- FGR Ductwork (loose)
- Stack (loose)
Plus! As an option, we can offer our CataStak™ SCR system for 2.5 ppm ultra-low NOx emissions compliance.
| Steam Capacity | 82,500 lb/hr |
|---|---|
| Steam Temperature | Saturated |
| Design Pressure | 500 psi |
| Operating Range | 100 - 475 psi |
| Standard Fuel Type | Natural Gas (#2 Oil / Hydrogen-Blend Options) |
| NOx Emissions (natural gas) | 30 ppm (2.5 ppm Option) |
| Boiler Type | Watertube |
Download the full rental boiler specification for additional details.
