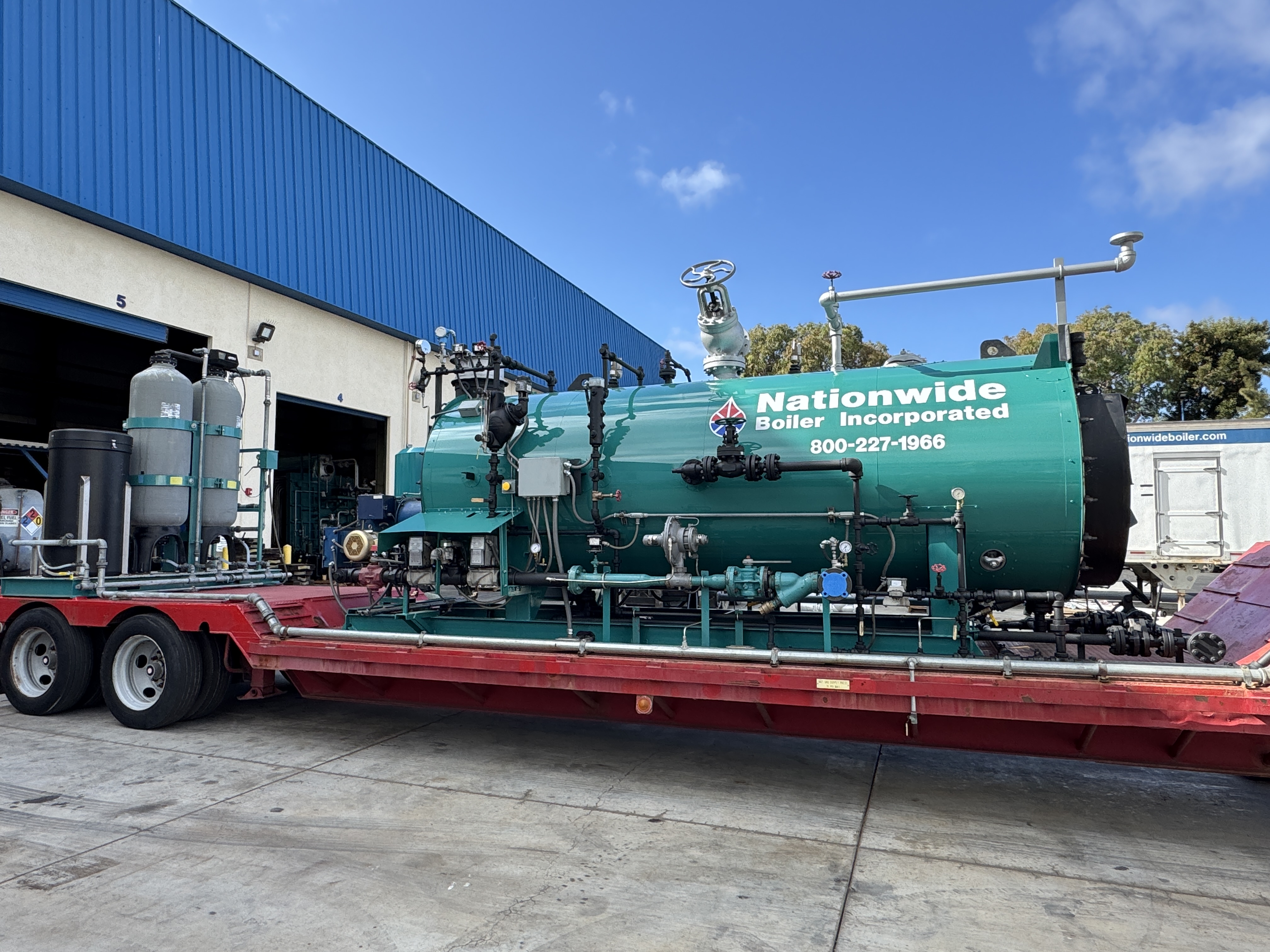

Nationwide Boiler's large fleet of rental boilers includes multiple 200 HP ultra-low NOx mobile steam plants. Designed at 250 psi, these temporary steam plant systems include the following:
- Package Firetube Boiler
- Ultra Low NOx Burner
- Gas Pressure Regulator
- Motor Control Center
- Valve Trim (header, safeties, blowdown, etc)
- Spray-type Deaerator with (2) Feedwater Pumps
- Duplex Water Softener with Brine Tank
- Chemical Feed System
- Blowdown Separator
- Stack (shipped loose)
All equipment is fully piped and wired, mounted on a 40' open-trailer for true rental boiler mobility.
Plus! These rental boilers are pre-permitted for expediteduse in the SouthCoast Air Quality
Management District (SCAQMD) of California.
| Steam Capacity | 6,900 lb/hr |
|---|---|
| Steam Temperature | Saturated |
| Design Pressure | 250 psi |
| Operating Range | 50-225 psi |
| Standard Fuel Type | Natural Gas |
| NOx Emissions (natural gas) | 9 ppm |
| Boiler Type | Firetube |
Download the full rental boiler specification for additional details.
