Nationwide Boiler’s package watertube boilers feature Babcock & Wilcox boilers in a range of sizes. The table below showcases typical arrangements for Nationwide’s package boilers, however opposite hand and other arrangements are available upon request.
Balance of plant equipment, such as a deaerator, water softener, blowdown heat recovery, and CataStak SCR system can also be added. Additional critical options are available, including but not limited to:
Mud Drums Heating Coil
Platforms & Ladders
SIL 2 or 3 Rated Control Panel
Safety Valve Vent Stacks & Silencers
Three Element Feedwater Control
Steam Flow Transmitter & Recorder
Natural Gas Regulator

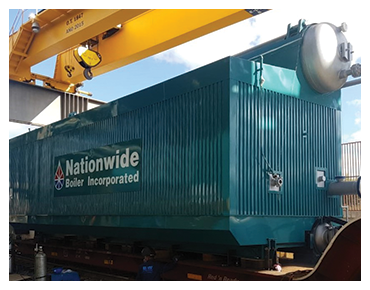

As a partner and stocking distributor for Babcock & Wilcox, Nationwide Boiler is proud to offer a variety of new and reconditioned boilers, available for quick delivery. We continually stock our “World Boiler”, a B&W low NOx 200,000 pph superheat steam skid-mounted package boiler (firing natural gas or #2 oil at 750 psig design / 750 F) which can be delivered anywhere in the world. The table below references both stock equipment and units that are purchased on an as-needed basis with a longer lead time. Inquire within for more details.
Download our standard packages, and contact us today for more information!
|Capacity||Type||Design Pressure||Temperature||NBI Model|
|235,000 lb/hr||D||650 or 350 psig||Saturated||235-B&W-D-650SAT|
|200,000 lb/hr||D||750 psig / 750F||Superheat||200-B&W-D-750SH|
|150,000 lb/hr||D||350 psig||Saturated||150-B&W-D-350SAT|
|125,000 lb/hr||D||350 psig||Saturated||125-B&W-D-350SAT|
|110,000 lb/hr||O||750 psig / 750F||Superheat||110-B&W-O-750SH|
|100,000 lb/hr||D||350 psig||Saturated||100-B&W-D-350SAT|
|82,500 lb/hr||D||350 psig||Saturated||82-B&W-D-350SAT|
|75,000 lb/hr||O||750 psig / 750F||Superheat||75-B&W-O-750SH|
|75,000 lb/hr||O||750 psig||Saturated||75-B&W-O-750SAT|
|75,000 lb/hr||D||350 psig||Saturated||75-B&W-D-350SAT|
|50,000 lb/hr||D||350 psig||Saturated||50-B&W-D-350SAT|
